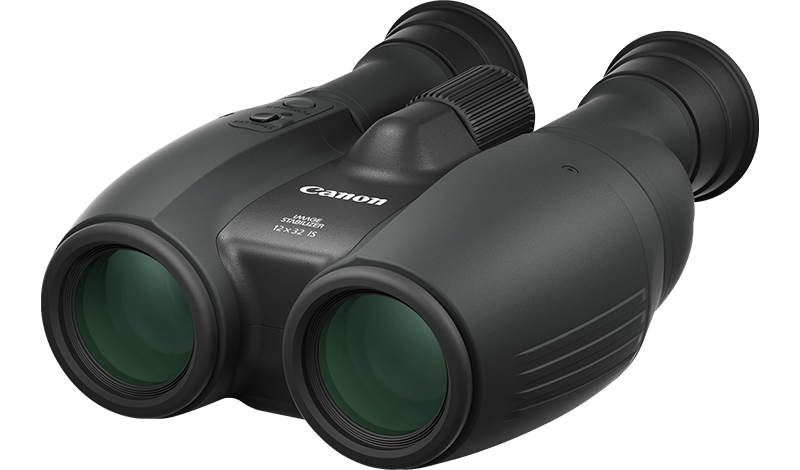

Canon 12x32 IS
Specifications

Apparent Field of View

55.3

Magnification

12x

Weight (Excluding battery)

780g

Specifications

Specifications in detail

Optical Characteristics

Binocular type

Prism

Magnification

12x

Objective lens effective diameter

32mm

Filter Size

-

Real Field of View

Apparent Field of View

55.3 1

Field of View at 1000m

87m

Optical Construction

Objective lens construction

7 elements in 6 groups

Eyepiece lens construction

5 elements in 4 groups

UD lens

-

Doublet Field Flattener

Yes

Exit Pupil diameter

2.7mm

Eye relief

14.5mm

Prism type

Porro II prism

Lens coating

Super Spectra coating

Focusing and dioptric correction

Focusing system

Object lens movement

Focusing method

Manual focus

Dioptric correction method

Dioptric correction ring

Dioptric correction range

+/- 3.0m-1 (dioptre)

Closest Focusing Distance

2m

Image Stabilizer

Image Stabilizer system

Lens shift

Correction angle

+/- 1.0°

Shake detection system

1 Gyro sensor (2-axis)

Image Stabilizer activation

2 push button switches

Power Source

2 x AA size batteries

Battery life

+23°C: approx 10 hours

-10°C: approx 1 hour (using alkaline batteries) 2

Battery Level Indicator

Yes (LED)

  1. Apparent field of view based on the ISO 14132-1:2002 standard
  2. Based on Canon testing standards
